The one-sided earphone

-



What's one thing you may find yourself buying every year or even twice, thrice at times more and keep promising yourself: " Okay, I'll be more careful with this one?"
Well, for me, its the earphones. I just never understand how they always keep spoiling.... Aand, its always on one side and then it sucks cause then its never as loud as it used to be. So I agreed with myself never to buy any anymore but instead, I will be my own handy man(or woman) and do the repair myself.

That is where Soldering comes in. I am still not perfect but I thought i'd share on it and hope that you may try it too. Its a bit tricky but you'll just get a hang of it and hopefully, you won't waste your money all the time getting some new pair of earphones. Aand even get to brag on doing repairs for yourself.

So my definition of soldering is " Soldering is a skill that enables you to join electronic components using some molten metal called the solder(which not only provides a physical join but also is conductive hence the circuit works fine) and a pencil that melts the solder onto the components being joined".

Mostly, when the earphones get spoilt, its always due to some wire thats detached. That's why, at times when you twist the side where the earpice isn't working, it always work for some time then stops. That's the issue am talking about. So instead of throwing the earphones away or giving it out, you can try repairing it.

Requirements:

A soldering pencil -->600shs (there are others, but thats the cheapest one and work well too)
Solder → 20shs per metre

How to do it:

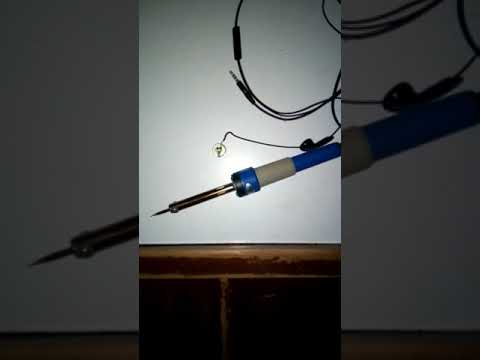

First, I apologize cause my video wasn't so clear😞😞 so I will explain instead and hope that with this and the video bit, you will get your soldering done well.

  • So first, you will have to open the side of the earphone's earpiece that is not working,
  • Ofcourse, place it down on a surface and check to see if any wires is just hanging around
  • If there is, then that's definitely our culprint. And this is where I always wish I had more hands.
  • Using your creativity, you will have to hold the wire down , then take the soldering pencil and the solder(the soldering pencil should be hot of course) and get your soldering done.
Now the first time may be unsuccessful but you will have to keep on trying.

Things to note while soldering:

  1. To avoid lead poisoning, always do your soldering in a well ventilated room as all solders contain a little percentage of lead.
  2. Ensure that your soldering pencil has completely cooled off before storing it. Also take care not to touch it while its still hot cause it may be of course burn you.
  3. Just take a deep breath and stay calm so as to make it easier to solder. The more tensed you are, the less the chances of you accomplishing your soldering.
  4. Soldering is an important skill in the electronics path hence I would say that we all have to learn how to do it.

Have fun. And feel free to tell us how your first time was when you tried soldering.
Mine was so hectic and I couldn't help but wonder why they would make such an equipment haha. But you will find your hacks.

Comments

Post a Comment

Popular posts from this blog

MIT App Inventor

-
Instead of Android Studio, I decided to use MIT App Inventor 2 which is a web based, open source application that is maintained by MIT( Massachusetts Institute of Technology ) and is used for developing simple Android Aplications.  I liked and preferred it to Android studio because of its simplicity. Anyone can use it, even those who have very little coding experience can easily understand it and within no time be able to develop their own android applications. For those who are just beginning the programmer journey in Android, you can start with App Inventor for it to aid you in understanding basic concepts on Android App development then later start using Android Studio as it is actually the recommended and official IDE for Android Development. This is part of the code from the app (LoadBlue Control) I will be using for our Weighing Scale project. MIT App Inventor is a great way to start learning how to build applications for Android. Once you get a good hold of how to c
Read more

Tech ventures: The Bluetooth module(HC-05 zs-040)

-
The Bluetooth module was quite easy to understand. Though, there were some of the things that i noted and i would like to share with you so that you will even take a shorter time when you want to use it. HC-05 has 6 header pins(the STATE, RXD, TXD, GND, VCC, EN). It can work as both master and slave. This means that it can either initiate a connection or accept a connection from another device. Activating AT mode: Ensure that pin 34 is connected to 3.3v. With all the pins connected, disconnect the HC-05 from a power source. Start pressing the button below the EN header pin and switch on the module while doing it. Notice that the LED starts blinking slowly. You are now in AT mode which allows you to view and change the Bluetooth settings e.g the name of the module, the baud rate, whether or not it operates in master of slave mode. e.t.c.
Read more

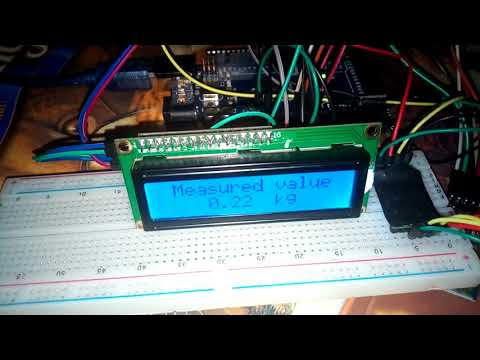

The LoadCell Project

-
